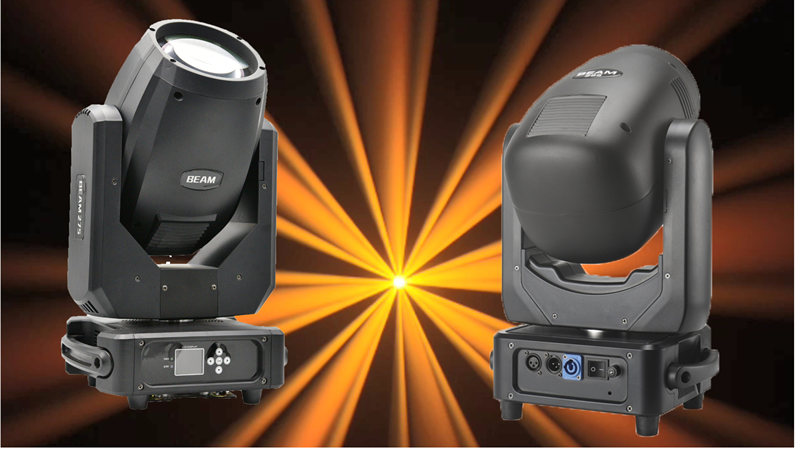

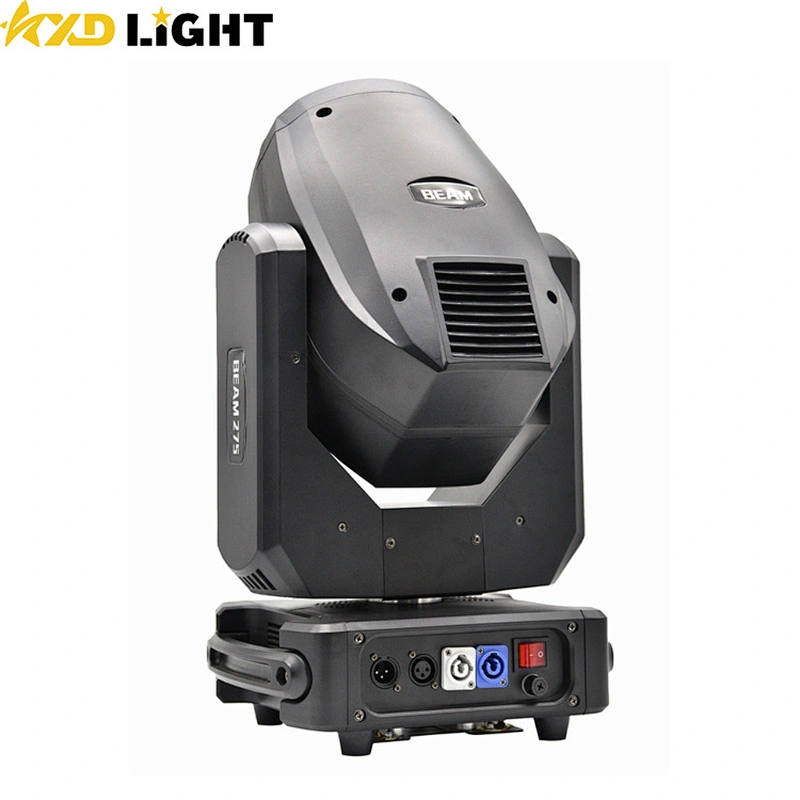

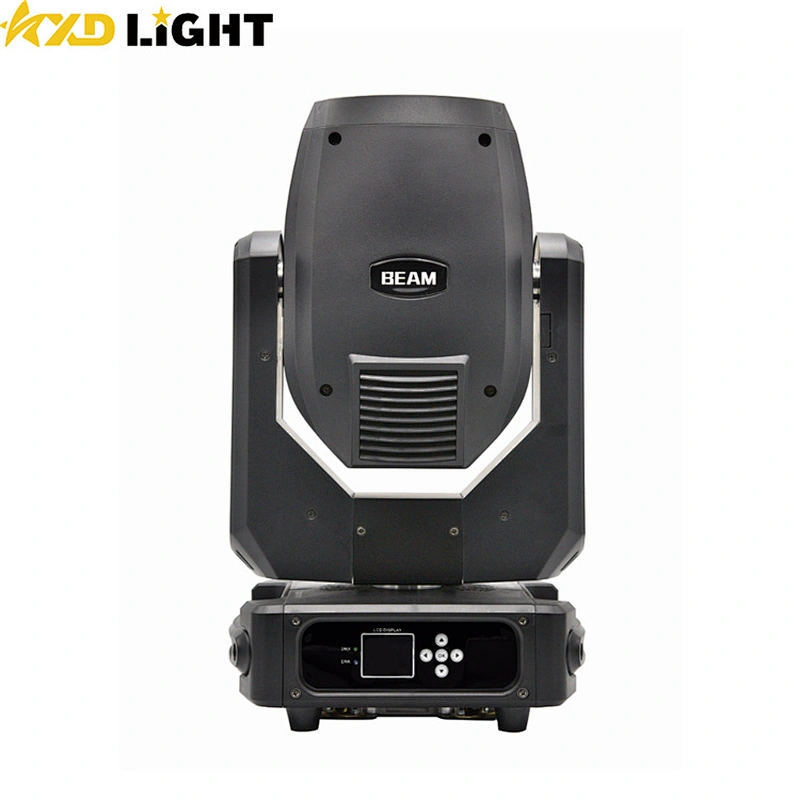

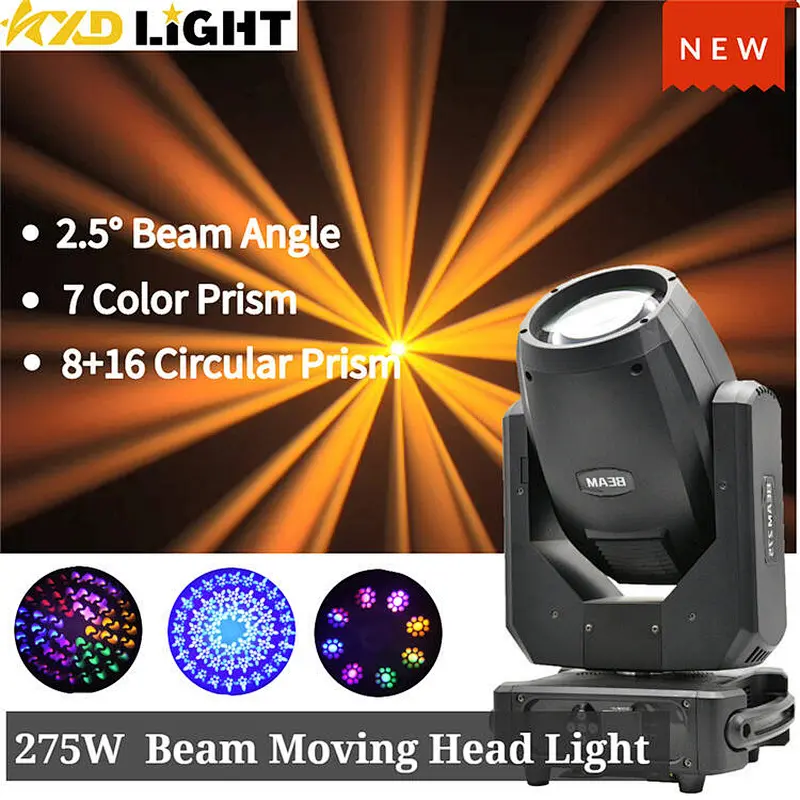

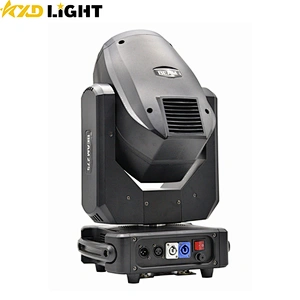

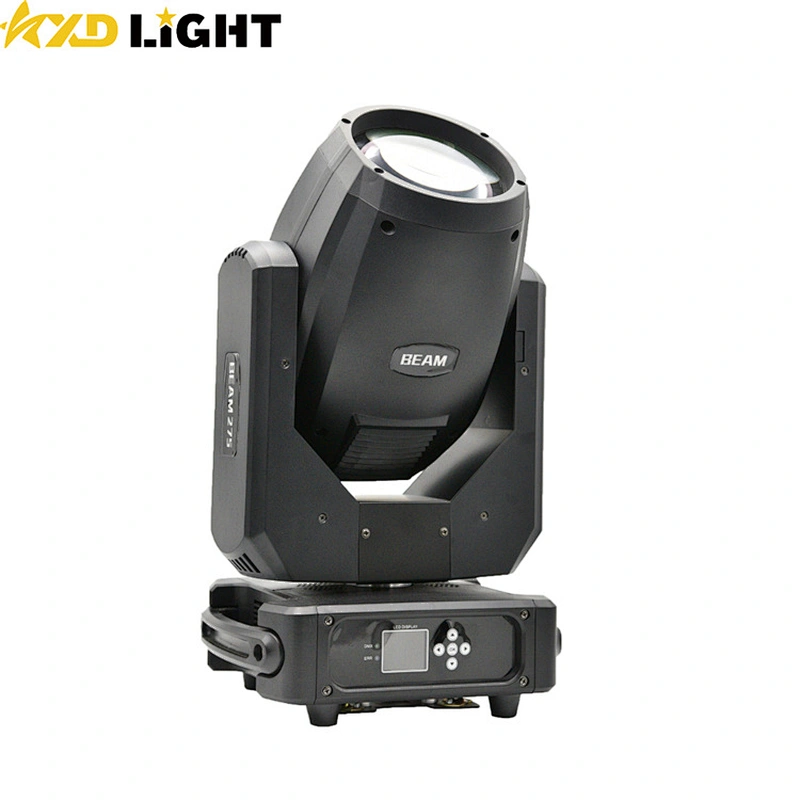

275W 9R Sharpy Beam Spot Wash Moving Head Light
We are exciting to have the B300, it's one of our amazing beam fixture this year, powered by Osram sirius 275W, the razor shapy 2.5 degress beam and with all the features, every lighing designer will like it.
SPECIFICATION
1. Item number: KXD-B300.
2. Power consumption: 450W.
3. Input voltage: AC 90V-240V,50-60Hz.
4. Light source: Osram SIRIUS 275W lamp.
FEATURES
5. Color wheels: 14 colors +Open
6. Static gobo wheel: 13 fixed metal gobos + Open
7. Prism: 2 kind of prism : 8-facet circular rotating prism+(8+16) facet circular rotation prism
8. Beam: 2.5° beam angle
9. Dimmer: 0-100% linear dimming system
10. Frost: linearly adjustable frost
11. Focus: linearly adjustable
MOTORIZED
Pan/Tilt
12. Pan movement range: 540°
13. Tilt movement range: 270°
14. 8bit/16bit movement solution, optional
15. Automatic Pan/Tilt position correction
CONTROL
16. Display: LCD display
17. DMX Channel: 16/20CHs
18. Control mode: Master /Slave synchronization,Stand-alone mode and and DMX512 control
CONSTRUCTION
19. Data in/out socket: 3pin+5pin DMX XLR
20. Power connector: PowerCon In/out
21. Protection rate: IP20, for indoor use
This Beam Moving Head Light is powered by Osram Sirius 275W lamp that just newly launched, features with specially-designed optics allows the fixture to create an extremely potent output, with a tight aperture of just 2.5 degrees, it generates a razor sharp beam capable of extremely long throws and chunky midair effects.
Equipped with a 14 colors wheel and a fixed metal gobo loaded with 13 special design patterns, as well as 2 kind of rotation prism ( 8-facet prism and 16-facet prism, can combines to 32 prism), that can create a gorgeous aerial effects, meanwhile, the fixture is also fitted with an independent frost filter that can be used to switch the unit's output to a soft-edged wash if required.
The 275W Light is only 14kgs, 45*28*22cm, easy to do transport and install, it is also compatible with the RDM protocol so can also be addressed remotely using a compatible control system, choice of two DMX modes mean that the unit can be controlled by either 16 or 30 channels and it is fitted with professional 3-pin+5 pin DMX input and output sockets.
